Show one important number from a table calculation or saved metric.

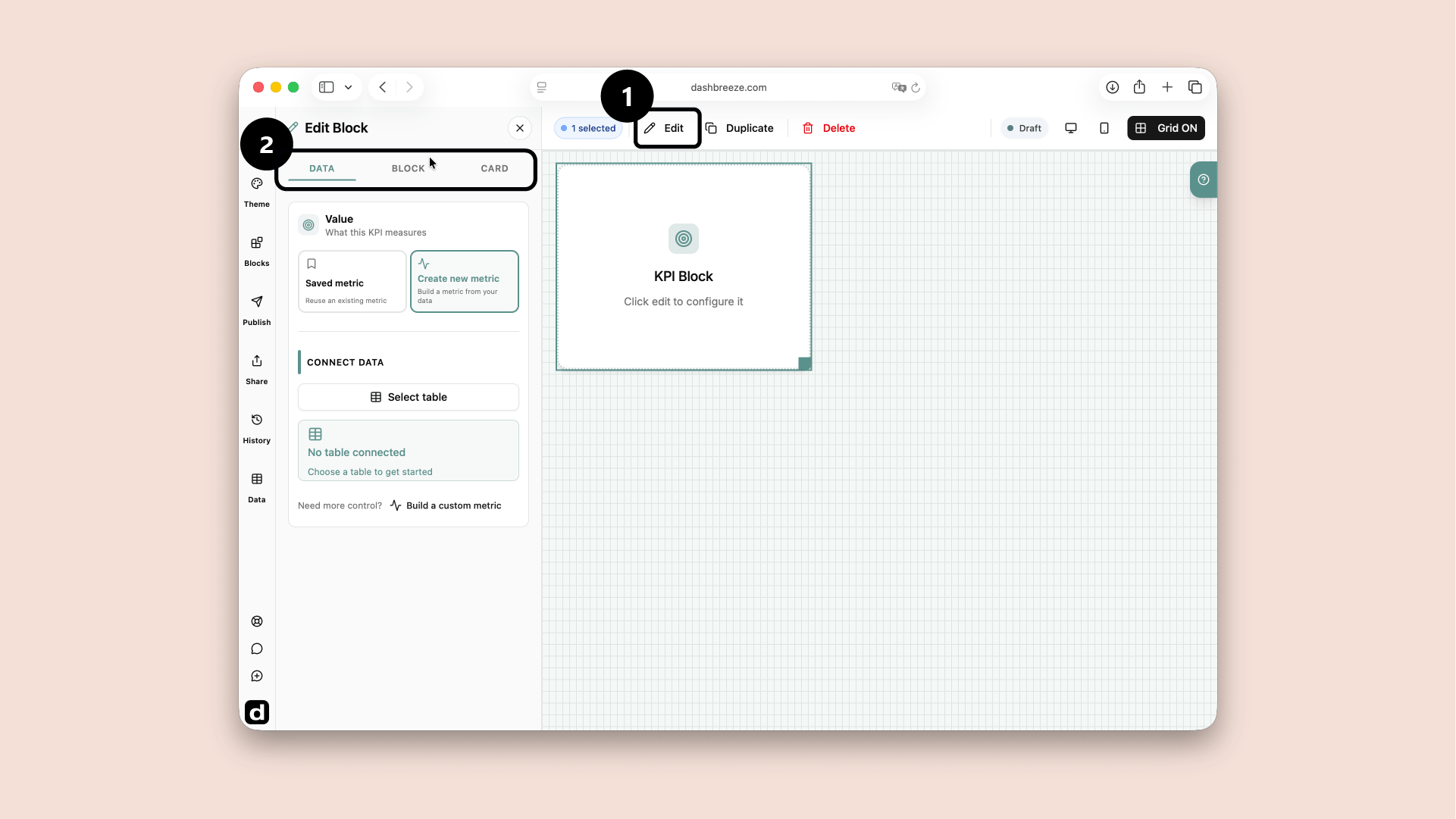

Select the KPI block and click Edit (1). Use the Data, Block and Card tabs (2) to configure it.
A KPI block shows one important number in a large, easy-to-read format. For example, it can show total revenue, the number of customers, or the average order value. Use it when people need to understand a key result at a glance.
Understand the settings tabs
1Data
Choose what information the block uses.
2Block
Change how the information is displayed.
3Card
Style the container around the block.
Start with Data:The block needs information before it can show anything. The Block and Card tabs are optional. If you do not customize them, the block and its card follow the dashboard theme. Use these tabs only when you want this block to look different from the theme.
Configure the Data tab
Choose how the KPI gets the number it displays.
Value
Required
The KPI stays empty until you choose one of the two options shown on the screen:
Create new metric
Use this when you want to calculate a number from table data for this KPI.
1. Select table
Required
Choose the table that contains the information you want to measure. For example, choose Orders to calculate total revenue.
2. Column
Required
Choose what to measure, such as Revenue, Customer ID, or Created Date. The column type controls which Calculation Modes are available.
3. Calculation Mode
Required
Choose how the selected column becomes one number. For example, Sum adds revenue values and Count counts records.
How Calculation Mode changes the result:The selected mode turns many source values into the number plotted by the block.
Example values:102020
Sum
50
Average
16.7
Minimum
10
Maximum
20
Count
3
Count Distinct
2
Count Distinct returns 2 because the values contain two unique numbers: 10 and 20.
Choose Sum for a total
Use it for values you want to add together, such as total revenue, units sold, or hours worked.
Choose Average for a typical value
Use it for questions such as average order value, average rating, or average response time.
Choose Minimum for the smallest value
Use it to find the lowest price, shortest time, or smallest result.
Choose Maximum for the largest value
Use it to find the highest sale, longest time, or largest result.
Choose Count to count values
Use it to answer questions such as how many orders, customers, or records contain a value in the selected column.
Choose Count Distinct to count unique values
Use it when repeated values should count once, such as the number of different customers, countries, or products.
The available modes depend on the column type. Number columns support every mode. Text and date columns support Count and Count Distinct.
Filter
Optional
Limit the calculation with another condition from the selected table. Leave this empty to include every row.
Example: filter the selected table:If the KPI uses the Orders table, you can choose its Region column and set the condition to equals Europe. The KPI then calculates its result using only European orders. This filter belongs to this block, and it does not edit the Orders table. To let viewers choose the condition themselves, add a Filter block to the dashboard.
Build a custom metric
Optional
Use this for a more sophisticated calculation. A custom metric can use values from more than one table and combine those values with operations such as addition, subtraction, multiplication, or division. For example, divide total Revenue by total Orders to calculate average revenue per order.
Saved metric
Use this when the metric has already been created in the workspace. Click Select metric, search the list, and choose the metric you want. The KPI reuses that metric's calculation and number format. After selecting it, use Change metric to choose another one or Edit metric to update its configuration. This is useful when the same business measure should stay consistent in different blocks or dashboards.
Configure the Block tab
The Block tab controls how the number is displayed. Every setting in this tab is optional:
Font Family
Optional
Change the typeface used for the number.
Alignment
Optional
Place the number at the start, center, or end of the block.
Text Color
Optional
Change the main KPI value. This does not change the card title or description.
Font Size and Font Weight
Optional
Control how large and bold the value appears.
Configure the Card tab
The entire Card tab is optional. If you do not customize it, the card follows the dashboard theme. Use this tab only when you want this card to look different.
Card Style
Optional
Choose the style that fits the dashboard. This changes the card surface, border, corners, and shadow. It does not change the block's data.
Default:
Standard card
Elevated:
Rounded with a stronger shadow
Cyber:
Glowing colored edges
Claymorphic:
Soft three-dimensional shading
Flat Panel:
Square surface without a shadow
Glass:
Transparent, blurred surface
Neobrutalist:
Thick border and high contrast
Neuromorphic:
Soft surface blended into the background
Gradient:
Background that blends colors
Background
Optional
Show or hide the card surface. Available colors follow the selected style.
Icon
Optional
Add a symbol to the header. Choose its icon and background colors.
Title
Optional
Name the block. Keep it short and clear.
Description
Optional
Add context such as the unit or date range.
Footer
Optional
Add a source, update time, or short note at the bottom.
Typography is separate:Title, Description, and Footer each have their own color, font, size, and weight. These settings do not change the data inside the block.
